DL-MBX | Ultrasonic Distance / Level Sensor for LoRaWAN®
The device DL-MBX enables remote monitoring of water level, fill level of tanks and silos, fill level of waste containers, presence of objects or snow level. It measures the distance between the sensor head and the target (rangefinder). The measurement principle is based on ultrasonic waves which are transmitted by the sensor and reflected back from nearby objects. Using the time of flight of the sound waves and the speed of sound (temperature compensated), the sensor computes the traveling distance and thus the distance to the object.
Functionality (Devices):
ACCELERATION
AIR HUMIDITY
AIR PARTICLES
AIR PRESSURE
AIR TEMPERATURE
ANALOG INPUT TRANSMITTER
BAROMETRIC PREASSURE
BUTTON / SWITCH
CARBON MONIXIDE
CATTLE TRACKING
CHEMICAL DETECTION
CO2
COLD CHAIN MANAGEMENT
CUSTOMER SATISFACTION/FEEDBACK
DENDROMETER
DIGITAL INPUT TRANSMITTER
DIFFERENTIAL PRESSURE
DISTANCE
DOOR ACTIVITY
E-INK DISPLAY
ELECTRICAL CONDUCTIVITY
ELECTRICITY METERING
ENERGY METERING
ENERGY OPTIMIZATION
FLOOR DRAIN LEAKAGE
GAS DETECTION
GAS METERING
GAS TANK LEVEL
GYROSCOPE
HUMIDITY
HVAC MONITORING
INCLINOMTETER
INDOOR ENVIRONMENT
INFRARED PYROMETER
IR
LEAF WETNESS
LEAKAGE
LEVEL
LIGHT
LIGHTNING AVERAGE DISTANCE
LIGHTNING STRIKE COUNT
LIQUID LEVEL
MANHOLE MONITORING
MBUS - LoRaWAN BRIDGE
MODBUS - LoRaWAN BRIDGE
MOISTURE
MOTION DETECTION
MOVEMENT
MULTI PURPOSE
NITRIC OXIDE
NITROGEN DIOXIDE
NOISE LEVEL
OCCUPANCY
OPEN / CLOSE
OPTICAL DISOLVED OXYGEN
OPTICAL PULSE COUNTER
OVERFLOW MONITORING
OXYGEN
OZONE
PAR LIGHT
PARKING OCCUPANCY
PARTICULATE MATTER (PM)
PASSAGE DETECTION
PEST CONTROL
pH LEVEL
PHOTOSYNTHETICALLY ACTIVE RADIATION
POSITION / TRACKING / GPS
PRESSURE
PROXIMITY
PULSE COUNTER
PUSH BUTTON ALARM
RAIN GAUGE
RELATIVE HUMIDITY
RELEASE BUTTON
REMOTE POWER SOCKET
REMOTE RADIATOR CONTROLLER
REMOTE READING OF EXISTING METER
REMOTE RELAY CONTROLLER
REMOTE VALVE
SALTINITY
SMOKE DETECTION
SOIL MOISTURE / IRRIGATION
SOIL TEMPERATURE
SOIL VOLUMETRIC WATER CONTENT (VWC)
SOLAR RADIATION
SOUND
STRAIN/WEIGHT
STRUCTURAL LOAD
STRUCTURAL TENSION
SUB METERING AND BILLING
SURFACE TEMPERATURE
SURGE ARRESTER
TEMPERATURE
TILT MONITORING
TURBIDITY
TVOC
VACUUM PRESSURE
VAPOR PRESSURE
VEHICLE COUNTER
VIBRATION
VOC
WASTE MANAGEMENT
WATER FAULT CIRCUIT BREAKER
WATER METERING
WATER TEMPERATURE
WEIGHING SCALE
WIND DIRECTION
WIND GUST
WIND SPEED
WINTER ROAD MAINTENANCE
Applicable Environment (Devices):
Indoor
Outdoor
IP Rating (Devices):
Polycarbonate; weatherproof, impact-, UV-resistant (IP66/IP67). Pressure equalizer plug with PTFE membrane (IP68). Sensor: IP67 rating.
Geographical market:
Austria
Denmark
France
Ireland
Netherlands
Norway
Poland
Portugal
Spain
Sweden
United Kingdom
Suitable applications:

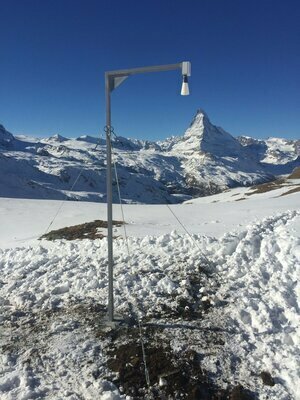

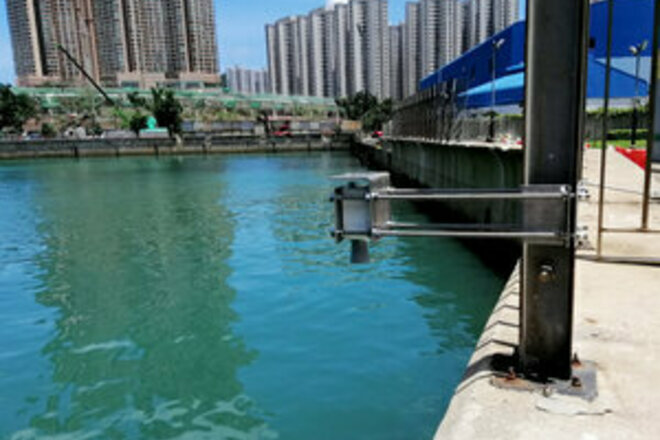

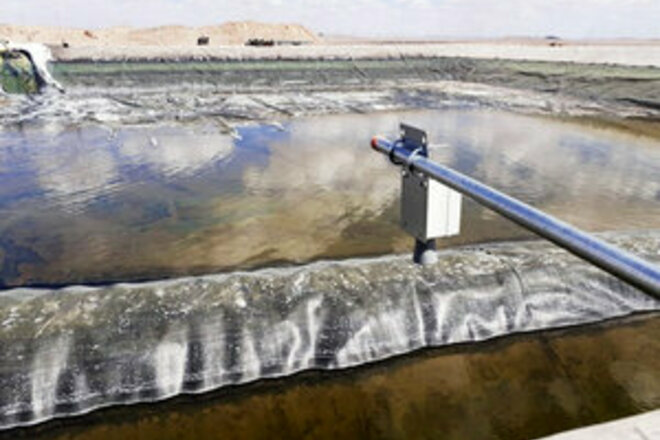

Running water level, Flood monitoring, Waste water management, Snow level, Silo, waste and tank level
Battery lifetime (range):
3.5 years (10 min interval, SF12) ... 12.5 years (60 min interval, SF7)
Access technology:
LoRaWAN
External information:
https://www.decentlab.com/products/ultrasonic-distance-/-level-sensor-for-lorawan
Where to buy this device:
mail@decentlab.com
Detailed product specifications:
https://cdn.decentlab.com/download/datasheets/Decentlab-DL-MBX-datasheet.pdf
Certified members:
DECENTLAB
Contact information:
mail@decentlab.com or +41 44 809 35 90
Company description:
Decentlab is a Swiss company providing wireless sensor devices and services for distributed, cost-effective monitoring solutions. The sensor devices communicate wirelessly over LoRaWAN® and are designed for ultra low power consumption, capable of operating on batteries for several years. The devices are built for industrial applications and are ready to be deployed in any harsh indoor or outdoor environment.
Company website:
https://www.decentlab.com
Listing created
Sep 22, 2021
